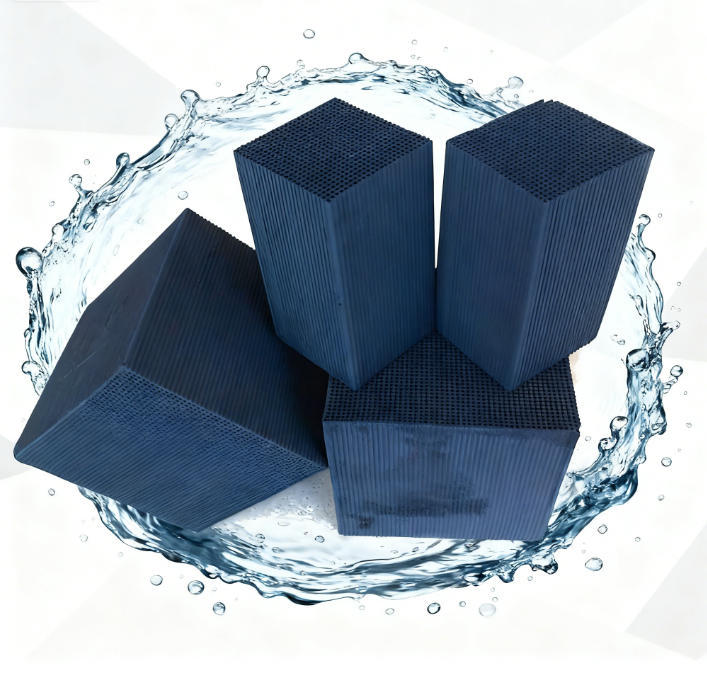

Waterproof TypeHoneycomb Activated Carbon

Specific Parameters

• Iodine Value: Usually ranging from 600 to 900mg/g, which reflects its adsorption capacity.

• Compressive Strength: Not less than 0.8MPa, ensuring the structural stability during use.

• Specifications: Commonly available in various sizes such as 100×100×100mm, facilitating applications in different scenarios.

• Pore Density: Generally 100 - 150 pores per square inch, which affects the adsorption efficiency and air resistance.

Applications

• Waste Gas Treatment: Widely used in the purification of waste gases from industries such as chemical engineering, spray painting, and printing. It effectively adsorbs harmful gases such as benzene, formaldehyde, and VOCs, helping enterprises meet the emission standards.

• Air Purification: Applied to the air purification in indoor and public places to remove odors and pollutants and create a healthy breathing environment.

• Sewage Treatment: It can adsorb some organic impurities and heavy metal ions in sewage, assisting in the improvement of water purification.

Advantages

• High Adsorption Efficiency: With a large specific surface area and abundant pores, it has a large adsorption capacity and a fast adsorption speed for multiple pollutants.



  • Excellent Water Resistance: Thanks to special waterproof treatment, it can maintain stable adsorption performance in humid environments or when in contact with water, expanding the scope of application.

  • Low Air Resistance: The honeycomb structure enables smooth gas passage with low air resistance, saving energy and facilitating the stable operation of the system.

  • Relatively High Strength: Not easy to break or pulverize, it has a long service life, reducing the costs and inconveniences caused by frequent replacements.

  Characteristics



  • Physical Characteristics: It has a regular honeycomb shape, uniform texture, moderate density, and a reasonable pore distribution, which is beneficial to gas diffusion and adsorption.

  • Chemical Characteristics: Chemically stable, it does not react with common adsorbed substances, avoiding secondary pollution, and has good acid and alkali resistance.

  Production Process

  Firstly, high-quality activated carbon raw materials are screened and undergo pretreatment such as crushing and grinding. Then, a special waterproof binder is added and mixed evenly. The mixture is extruded into a honeycomb blank using a mold. Next, high-temperature sintering is carried out to enhance strength and stability, followed by waterproof post-treatment. Finally, after strict quality inspection, the products are packaged and shipped out upon passing the inspection.
