Waste Gas TreatmentColumnar Activated Carbon

Product Overview

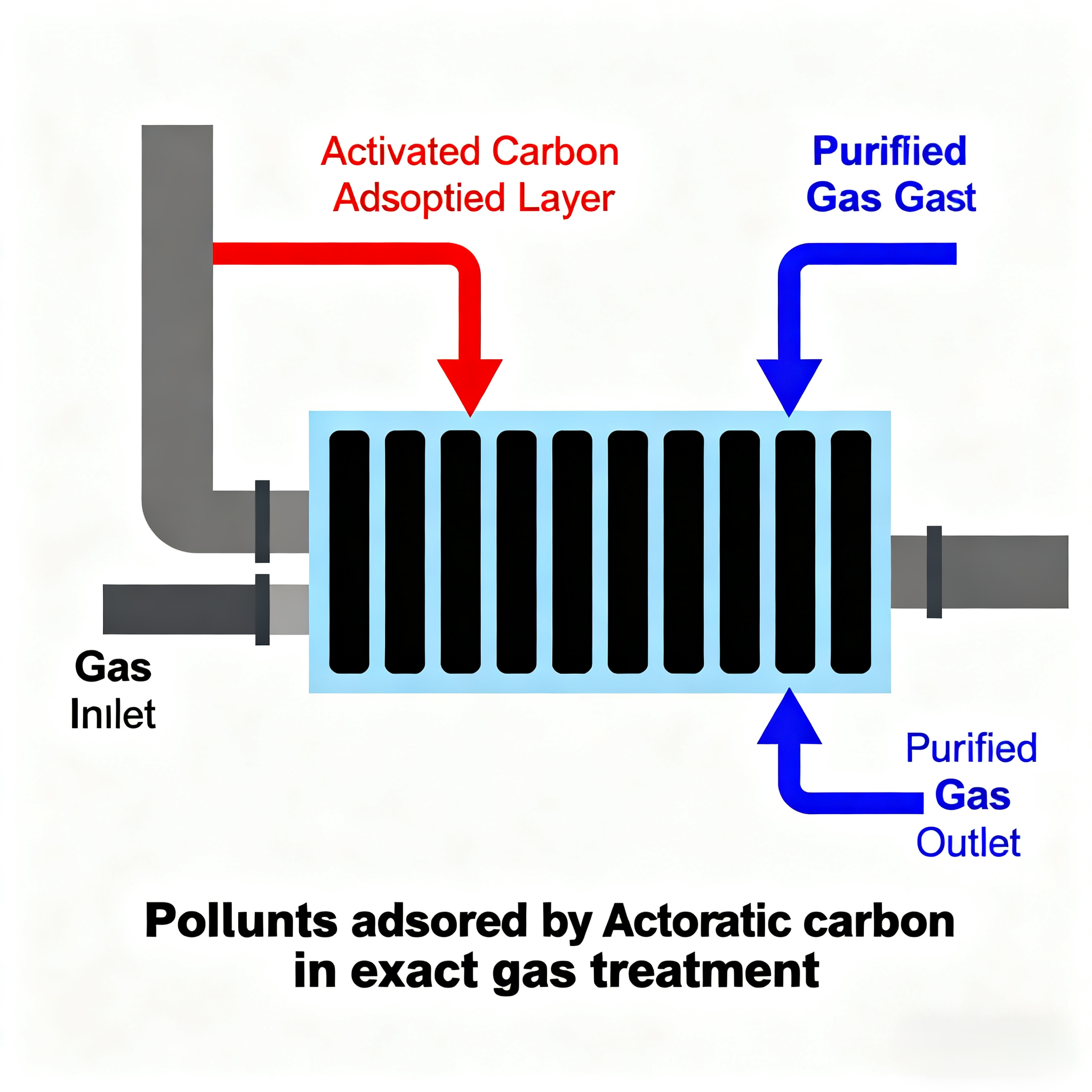

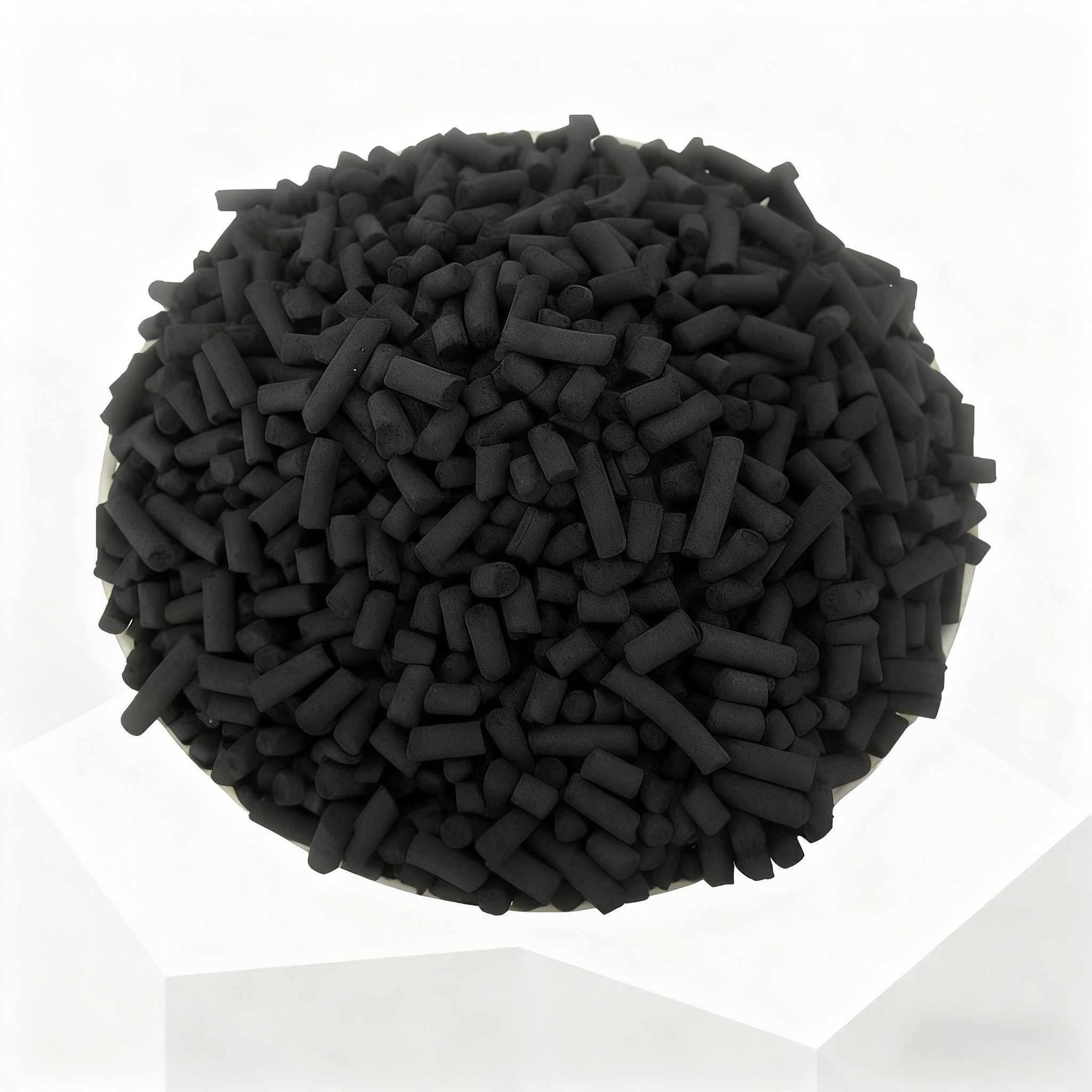

Columnar activated carbon for waste gas treatment is a cylindrical adsorbent built for the exhaust side of a plant: fixed-bed adsorbers and adsorption towers that have to take volatile organic compounds, odour and acidic gases out of an air stream before it reaches the stack. We extrude it from high-quality coal or coconut shell, then carbonise and activate the pellets so the pore network runs through the full cross-section rather than sitting only on the surface.

That structure is what lets the carbon hold the pollutants that actually turn up in industrial exhaust — benzene, toluene and xylene, formaldehyde and the other aldehydes, hydrogen sulphide, ammonia, and the solvent vapours released by coating, printing and rubber processing. Because the pellets are cylindrical instead of irregular, they settle into a uniform bed, gas passes through the voids evenly rather than finding a short circuit, and the whole charge works instead of one channel through it.

We build this as a dedicated waste gas treatment carbon rather than a general-purpose grade, and we work as the activated carbon supplier behind projects that need the same specification repeated at every bed change. Coal-based and coconut shell-based versions cover different iodine value ranges, and both come in several pellet diameters, so the carbon can be matched to the airflow, inlet concentration and tower depth you are running.

Specifications

Target Pollutants & Grade Fit

• Benzene series — benzene, toluene, xylene. Non-polar aromatics are the most straightforward duty for a straight carbon: small molecules that sit well in the micropore network. Where the inlet concentration is low and the outlet limit is tight, the higher iodine value coconut shell grade is the usual pick; where the load is heavy and the bed is changed on a schedule, the coal-based grade is the one most plants run.
• Aldehydes and ketones — formaldehyde, acetaldehyde, acetone. Small oxygenated molecules that adsorb readily but slip through a thin bed. Give them depth and contact time instead of a short polishing layer.
• Esters and styrene — ethyl acetate, styrene. Larger than the aldehydes, so the mesopore range does more of the work and the working zone sits deeper in the bed. Allow for that when you set the bed depth.
• Hydrogen sulphide and mercaptans. Polar, sulphur-bearing gases that plain carbon holds less strongly than the aromatics, so the working capacity in a given bed is modest and the change-out interval shorter. Send us the concentration and we will say honestly whether straight carbon can carry the duty.
• Ammonia and trimethylamine. Small, basic, polar molecules. Capacity on straight carbon is limited and depends on how much water the gas carries; these are usually handled as part of a staged system rather than by carbon alone.
• Sulphur dioxide and acid mist. Acidic and water-soluble, and able to form acid inside a damp bed. Knock them down upstream and confirm the vessel's materials before relying on carbon for them.
• Mixed solvent streams from coating, printing and rubber. A blend of non-polar solvents is a good match for the standard grades. If the same stream also carries ammonia or mercaptans, split the duty across two beds so the polar gases are not competing with the solvents for the same sites.
• Choosing between the two raw materials. Coconut shell develops the higher iodine value and the finer pore structure; coal-based carbon covers the lower range. As an industrial VOC adsorbent supplier we will tell you which one your duty justifies rather than quoting both and leaving the decision with you.

Diameter, Airflow & Bed Resistance

Diameter is the first decision that changes the numbers on your fan curve. A 1.5 mm pellet exposes more surface per cubic metre of bed, so the gas meets adsorption sites sooner and the working zone stays short — useful in a shallow polishing bed or where the outlet limit is tight. The trade-off is resistance: the same airflow through a bed of small pellets costs more fan energy, so the small diameters belong where the airflow is modest or the fan has capacity to spare.

A 6 mm pellet is the opposite compromise. It opens the void spaces inside the bed, keeps pressure drop down on high-volume streams and tolerates the surges that come with real plant operation, and it takes a heavier dust load before the surface blinds over. The 3.0 mm and 4.0 mm sizes sit in between and are what most fixed-bed adsorbers are designed around.

Superficial velocity, not diameter alone, decides how long the gas stays in contact with the carbon. Keep the velocity inside the range your tower was designed for: pushing more air through an existing bed shortens contact time, drives the working zone deeper and can carry the odour straight through to the outlet. If your airflow has grown since the tower went in, give us the new figure rather than the original one.

Bed depth works with velocity to set contact time, so a deep bed at moderate velocity is a far more forgiving duty than a thin bed at high velocity. Fill to the design depth — a bed left low to save carbon creates a free space where gas can jet and channel, and the carbon below it saturates long before the rest of the charge does.

Do not mix diameters in one bed. Large and small pellets segregate while the bed is being loaded and then settle differently under vibration, so the bed stratifies and activated carbon adsorption becomes uneven across the cross-section. Pick one diameter for the whole charge, and keep the same diameter at the next change-out so your pressure drop baseline stays comparable.

Send us the airflow in cubic metres per hour, the inlet concentration, the gas temperature, the relative humidity and the internal dimensions of the tower. With those we can tell you which diameter and bed depth will hold the outlet where you need it, and what pressure drop to expect.

Applications

• Chemical and petrochemical plants. Aromatics from process vents — benzene, toluene, xylene — and the sulphur dioxide that comes off sulphuric acid production. Beds here carry a continuous load, so the coal-based grades are common.
• Coating and printing. Spray booth exhaust and ink solvent vapour, usually at high airflow and low concentration. This is where the low resistance of a cylindrical pellet pays for itself, and where an activated carbon filtration stage normally sits behind a dry filter.
• Pharmaceutical manufacturing. Synthesis workshop off-gas and fermentation tail gas, both carrying a solvent mixture plus odour. Batch production means the concentration swings, so leave headroom in the bed.
• Electronics and semiconductor. Fluoride- and chloride-bearing exhaust from etching and cleaning lines. These gases are aggressive and water-soluble, so they are usually knocked down with a scrubber first and the carbon takes what carries through — tell us the concentration and we will say how much of that duty the bed can hold.
• Waste handling, wastewater treatment and livestock. The classic odour set: hydrogen sulphide, methyl mercaptan, dimethyl disulphide, ammonia and trimethylamine from tipping halls, sludge handling and barn exhaust. Concentrations are low but the complaint threshold is lower, so use a deep bed and change on breakthrough rather than on smell.
• Furniture, automotive, rubber and plastics. Formaldehyde, acetaldehyde, acetone, ethyl acetate and styrene from pressing, painting, moulding and curing. This is regulatory-driven industrial waste gas carbon work, where the bed has to hold the outlet under a permit figure for the whole campaign, not only at start-up.

Performance Advantages

Capacity across the concentration range. This industrial waste gas carbon is activated through the full pellet rather than at the surface only, so it keeps taking up pollutants whether the inlet is a dilute odour stream or a solvent-laden vent. On a correctly sized bed the outlet concentration drops sharply at start-up and then holds while the working zone travels down the bed.

Selective affinity you can steer. Raw material choice changes what the carbon prefers. The coconut shell grade, with its higher iodine value, is the sharper tool for small non-polar molecules at low concentration; the coal-based grade keeps more of the bed volume working on heavy loads. Neither is universal, which is why we ask what is in your gas before recommending one.

Low resistance through the bed. Cylindrical pellets with an open void structure let the gas pass without the fan working against the carbon. Lower pressure drop means less power drawn by the main fan and a steadier negative pressure in the ductwork upstream.

Mechanical strength that survives the plant. The pellets are built to stay intact against airflow, vibration and the handling every change-out brings. Fewer broken pellets means less dust at the outlet, less settling in the bed and a pressure drop that stays where you set it.

Regeneration before replacement. A saturated charge can go to thermal regeneration, where it is heated to drive the adsorbed pollutants off, or to chemical regeneration, where a reagent reacts with the adsorbate. Reusing the carbon cuts the cost of ownership and the volume of spent material leaving the site.

Physical Characteristics

• Cylindrical form. Regular pellets with a defined diameter and length. In a tower they settle into a predictable bed with consistent voidage from the top of the charge to the bottom, which keeps gas distribution even and removes the short-circuit paths that show up with irregular media.
• Interconnected pores. Pores run through the pellet and connect to one another instead of sitting as isolated pockets, so a molecule that enters at the surface can keep moving inward. That is what makes the interior of the pellet usable rather than decorative.
• Micropores. The smallest pores and the main working volume for small molecules — benzene, formaldehyde, acetone. Most activated carbon adsorption of solvent vapour happens here.
• Mesopores. The bridge between micropores and macropores. They carry larger molecules such as styrene inward and give desorbed material a route back out during regeneration.
• Macropores. The transport channels. They hold little themselves, but they move gas quickly to the micropore openings, which is why a pellet can be fast-acting and still present low resistance.
• Moderate density. Bulk density sits in the middle of the range for activated carbon: enough mass per cubic metre to give the bed real residence time, and open enough that the gas is not fighting the charge.

Chemical Characteristics

Bed Loading & Start-Up

1. Isolate and purge the adsorber, and check the support grid and screen rating against the weight of a full bed charge before anything is opened.
2. Clear out old media, scale and dust. Fines left from the previous charge migrate into the new bed and reappear later as unexplained pressure drop.
3. Put the support layer your tower design calls for in place and level it, so the first lift of carbon rests on an even surface rather than a mound.
4. Load in short lifts and keep the drop from bag or hopper to bed as small as you can. A bulk activated carbon delivery tipped in one drop breaks pellets and makes dust that purging will not fully remove.
5. Level each lift with a rake before adding the next. Walk on the bed as little as possible and never compact it.
6. Fill to the design depth and leave the freeboard the tower was built for. Write the finished depth and the pellet diameter into the maintenance log.
7. Purge the vessel with clean air to clear loading dust, then bring the gas on slowly and record the initial pressure drop as your baseline.
8. Take an outlet reading after the first stable operating period and file it with the batch record; that first figure is what you will compare against for the rest of the campaign.

Ordering & Delivery

• Grade and diameter. As an activated carbon supplier we build to a specification rather than a stock list: tell us the raw material family, the iodine value target and the pellet diameter — or the iodine value and particle size you need customised — and we will confirm what we can produce.
• Duty data. Airflow, inlet concentration, gas temperature, relative humidity and tower dimensions. As your industrial VOC adsorbent supplier we will not guess a grade from a tonnage alone.
• Batch values. Ask your sales contact for the measured figures on the lot that will ship: iodine value, compressive strength, bulk density, moisture and ash, plus the CTC (carbon tetrachloride) activity figure if that is your acceptance parameter. Test against the measured number rather than a catalogue range.
• Quantity. Order minimums depend on the grade and on the packing you choose, so confirm the figure with your sales contact before the campaign is planned.
• Lead time. Delivery depends on order size and on how much customisation is involved; ask for a schedule against your change-out date rather than a general figure.
• Packing. Tell us the bag weight you want and whether the bags should arrive palletised or whether you prefer a ton-bag format, and we will confirm what is available for this grade.
• Shipping terms. Port, incoterm and the document set are agreed per order with your sales contact.
• Samples. If you want to run a bench test before committing to a full charge, ask your sales contact about sample availability for the grade you are considering.
• Repeat supply. We keep the agreed specification on file, so the next activated carbon filtration charge matches the one currently in service instead of drifting to a new range.

Bed Life & Upstream Protection

• Judge on breakthrough, not on the calendar. A fixed change-out date is either early, and you pay for carbon that still has capacity, or late, and the outlet slips past its limit before anyone notices. Watch the outlet analyser instead: the working zone travels down the bed through the campaign, and the first sustained rise in outlet concentration tells you how much is left. Keep the outlet reading taken at commissioning as your baseline, and set the trigger far enough below the permitted figure that you still have time to book a delivery and a shutdown.
• Read the shape of the curve. A gradual climb spread over weeks is ordinary exhaustion of the lower bed. A step change over a few hours usually means a channel, a charge that has settled low in the vessel, or a change in the process upstream — find the cause before you order carbon, because a new charge will behave the same way in a faulty tower.
• Pressure drop and outlet concentration are two different signals. At steady airflow, a rising pressure drop supports dust, fines or a compacted bed; a falling pressure drop supports settling or a channel. Neither one is saturation, and neither is fixed by changing the carbon alone.
• Compare against your own history, not a rule of thumb. How long a charge lasts is set by inlet concentration, airflow, hours of operation and the mass of carbon in the vessel, so two identical towers on different processes can differ by a factor of several. Log operating hours, inlet concentration and outlet readings, and the second charge will tell you far more than the first.
• Keep dust out ahead of the bed. Dust settles into the pore mouths at the top of the charge and blinds the surface long before the bed is exhausted. A dry filter or bag filter ahead of the adsorber is the cheapest protection you can add, and it keeps your pressure drop baseline stable. Do not let the activated carbon adsorption stage act as its own dust filter.
• Keep free water out. Mist from a wet scrubber, condensate carry-over or washdown water wets the bed, fills pores and puts water in competition with the gas for the same sites. Fit a demister at the scrubber outlet, drain the low points in the duct, and check the droplet separator before the carbon rather than after it.
• Confirm the change-out with data before you commit. Send us the outlet trend, operating hours, inlet concentration and the mass of carbon in the vessel, and we will estimate how much capacity is likely to remain. If the charge is only part-spent you will know before you pay for a replacement; if it is genuinely finished you will have a defensible date for the maintenance record and for EHS reporting.

Batch Testing & Reports

• Carbon tetrachloride (CTC) activity. Iodine value describes micropore volume, while CTC activity is the figure many waste gas specifications are written around, and the two do not move in step. Tell us the acceptance figure in your tender and we will confirm whether the grade you are ordering is tested to it and what the shipping lot measures — do not assume a catalogue iodine value converts into a CTC number.
• The published range describes the family; the certificate describes your lot. Figures such as 300–600 mg/g iodine value for the coal-based grade or 80%–95% compressive strength describe what the grade family covers. The certificate of analysis for the lot you receive carries the measured values, and that is the number your incoming inspection should be checked against.
• Ask what travels with the shipment. At minimum a certificate of analysis for the lot, with the measured figures. Where a tender, an EHS audit or an end-customer specification calls for third-party testing, raise it at the enquiry stage so the sample and the report can be arranged before the delivery date rather than after it.
• Retained samples. Ask for a retained sample from your lot to be held against the delivery. If a performance question surfaces months later, the sample settles it against the batch instead of against recollection.
• Check the certificate scope, not only the standard number. We work to ISO 9001 and ISO 14001, and buyers running supplier qualification should ask for the scope and the issuing body and confirm that the scope covers the grade and the site you are buying from.
• Run your own incoming check the same way every time. Same sample split, same method, same laboratory — then a change in the result means a change in the carbon rather than a change in the test. As an activated carbon supplier we would rather hear about a figure that has drifted than have it discovered at the stack.

Scale & Supply Capability

Chengde Tianyuan Activated Carbon Co., Ltd. has been producing activated carbon in Chengde, China since 2003 as an integrated manufacturer and exporter, with a team of 50 covering production, quality control and export documentation in-house. Our works run on advanced equipment with sufficient capacity to keep repeat orders moving, and we operate to ISO 9001 and ISO 14001. We supply our full range of grades worldwide and support OEM work, custom specifications and private-label packing. Send your specification and volume, and we will confirm what we can schedule for you.
