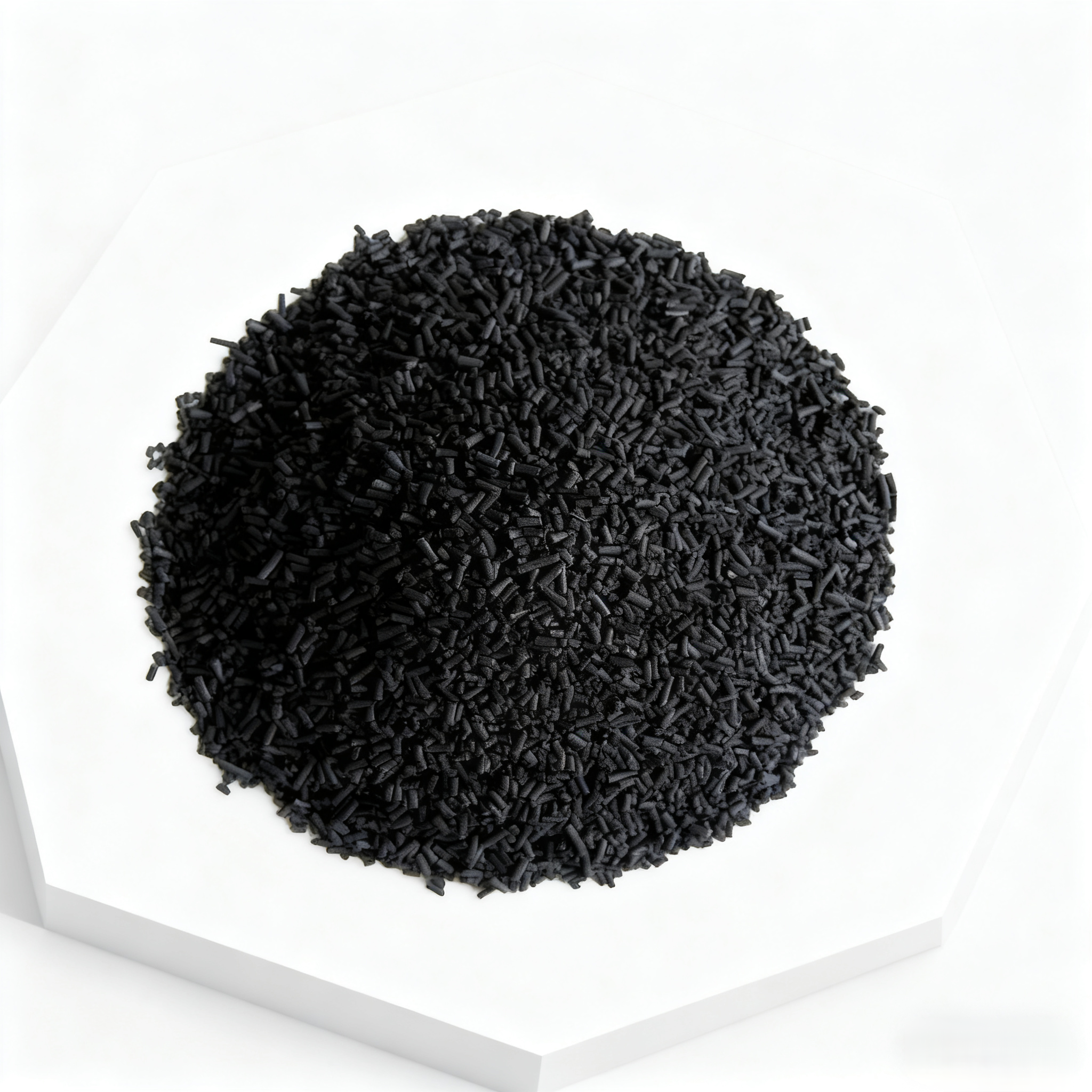

Columnar activated carbon dedicated to VOCs is a cylindrical adsorbent carefully prepared through advanced carbonization and activation processes, using high-quality coal-based and coconut shell materials as raw materials. It appears as black cylindrical granules, with its surface covered by abundant and evenly distributed pores that are interconnected, forming a large specific surface area and endowing it with excellent adsorption performance. It is specifically designed for the efficient adsorption and removal of volatile organic compounds (VOCs), playing an extremely important role in fields such as industrial waste gas treatment and indoor air purification.
-
Iodine Value: The iodine value of coal-based columnar activated carbon is usually between 300 - 600mg/g, while that of coconut shell columnar activated carbon can be as high as 800 - 1200mg/g. The higher the iodine value, the stronger the adsorption capacity of the activated carbon for small organic substances, which is of great significance for adsorbing small molecular aromatic compounds such as benzene, toluene, and xylene in VOCs, as well as aldehyde compounds such as formaldehyde and acetaldehyde, and can effectively reduce the content of low-concentration VOCs in the air.
-
Particle Size: Common diameter specifications include 1.5mm, 3.0mm, 4.0mm, 6.0mm, etc. Columnar activated carbon with a smaller particle size has a relatively larger specific surface area and more adsorption sites, which can accelerate the adsorption speed of VOCs and is suitable for occasions with low concentrations, large air volumes, and high requirements for adsorption rates. While larger particle sizes can reduce air flow resistance while ensuring a certain adsorption efficiency, and are more suitable for working conditions with large air volumes, high concentrations of VOCs, and concerns about the energy consumption of equipment operation.
-
Specific Surface Area: Generally ranging from 500 - 1500m²/g. The huge specific surface area provides sufficient attachment space for VOCs molecules, enabling them to fully contact with the activated carbon surface and be adsorbed, thus achieving effective purification of VOCs in waste gas or air, significantly reducing the emission concentration of VOCs and improving the ambient air quality.
-
Strength: It has good mechanical strength, and the compressive strength can usually reach above 80% - 95%. This enables the activated carbon to remain intact in particle form and maintain a stable pore structure during the use process, even when facing air flow impacts and equipment vibrations, ensuring the continuity and reliability of the adsorption process, prolonging the service life of the activated carbon, reducing the replacement frequency, and lowering the operating cost.
-
Bulk Density: Approximately between 0.4 - 0.6g/cm³. The appropriate bulk density is conducive to achieving a reasonable filling layout in adsorption equipment, ensuring both sufficient activated carbon mass to deal with the VOCs pollution load and maintaining good air flow channels so that gases containing VOCs can smoothly pass through the adsorption bed layer for purification treatment, while avoiding excessive air flow resistance caused by too high a density, which would affect the overall performance of the equipment.
-
Industrial Waste Gas Treatment: Widely used in VOCs waste gas treatment in industries such as chemical engineering, coating, printing, electronics, and pharmaceuticals. In the chemical production process, it can effectively adsorb VOCs generated by various organic synthesis reactions, such as aromatic compounds in petrochemical industry and monomer volatiles in plastic and rubber processing. In the coating industry, a large amount of VOCs are contained in spray paint waste gas, and in the printing industry, there are ink volatiles. These VOCs can be made to meet the emission standards through adsorption by columnar activated carbon. In the electronics industry, organic waste gases such as acetone and ethyl acetate generated in chip manufacturing and circuit board production can also be effectively removed, reducing pollution to the atmospheric environment and meeting the requirements of environmental regulations.
-
Indoor Air Purification: Used in air purification equipment in indoor places such as homes, offices, shopping malls, and hotels to adsorb harmful VOCs such as formaldehyde, benzene, and TVOC released by indoor decoration materials, furniture, office supplies, etc. It can effectively improve indoor air quality, remove odors, create a healthy and comfortable indoor breathing environment, protect people's health. Especially for newly decorated houses or places with newly purchased furniture, it can quickly reduce the indoor VOCs concentration and reduce harm to the human body.
-
High Adsorption Efficiency: Its well-developed pore structure and high specific surface area endow it with a powerful adsorption ability for VOCs. Whether it is low-concentration or high-concentration VOCs gas, it can quickly and effectively adsorb various organic components therein, with high purification efficiency, which can significantly reduce the VOCs concentration and even make it meet extremely low emission standards. It has a significant adsorption effect on many common VOCs such as benzene series compounds, aldehydes, esters, and ketones.
-
Selective Adsorption: It can conduct selective adsorption according to the molecular structures and properties of VOCs. Due to the specificity of the chemical functional groups on the surface of the activated carbon and its pore structure, it shows different adsorption affinities for VOCs with different polarities and molecular sizes, enabling precise adsorption and purification for VOCs from specific industries or specific sources, improving the pertinence and effectiveness of adsorption, reducing unnecessary adsorption loads, and prolonging the regeneration cycle and service life of the activated carbon.
-
Adaptability to Multiple Working Conditions: It has good physical and chemical stability and can work stably under different temperature, humidity, and pressure conditions. In the range of normal temperature to a certain high temperature (generally - 20℃ - 80℃) and in environments with relatively high humidity (up to about 80%), it can still maintain good adsorption performance and can be widely used in various complex industrial production environments and indoor air purification scenarios, without being restricted by factors such as seasons and regions.
-
Low Air Resistance: The shape design and reasonable pore structure of columnar activated carbon result in relatively low resistance when gases containing VOCs pass through the adsorption bed layer. This not only reduces the energy consumption of waste gas treatment systems or air purification equipment, reduces the load and operating cost of power equipment such as fans, but also ensures that the system operates under stable air pressure, improving the reliability and operating efficiency of the equipment, and avoiding problems such as unstable air flow and uneven adsorption caused by excessive air resistance.
-
Regeneration and Utilization: Columnar activated carbon after adsorption saturation can be regenerated through various methods such as thermal regeneration and chemical regeneration. Thermal regeneration involves heating the activated carbon to a certain temperature to desorb the adsorbed VOCs and restore its adsorption performance. Chemical regeneration utilizes specific chemical reagents to react with the adsorbate to realize the regeneration of the activated carbon. The regenerated activated carbon can be reused, reducing the treatment cost, reducing resource waste and waste discharge, conforming to the concept of sustainable development, and also providing an economical and environmentally friendly VOCs treatment solution for enterprises.
-
Appearance and Shape: It has a regular cylindrical shape. This shape is beneficial for uniform filling and distribution in adsorption equipment, ensuring that gas can evenly pass through the activated carbon layer, avoiding phenomena such as local insufficient adsorption or air flow short circuits, and improving the overall adsorption effect. The length and diameter dimensions of the cylinder are precisely controlled, with good consistency and uniformity, which is convenient for operation and management in industrial production and use processes.
Pore Structure: It has an abundant micropore, mesopore, and macropore system. Micropores are the main sites for adsorbing VOCs and have an extremely strong adsorption ability for small molecular VOCs. Their pore diameters are tiny (usually less than 2nm), which can generate strong intermolecular forces to firmly adsorb VOCs molecules on the inner surface of the pores. Mesopores (with pore diameters between 2 - 50nm) play a bridging role between micropores and macropores, facilitating the adsorption of large molecular VOCs and their diffusion inside the activated carbon, and also providing channels for the transmission of adsorbates inside the activated carbon. Macropores (with pore diameters greater than 50nm) are mainly responsible for providing macroscopic air flow channels, reducing the resistance when gas passes through, enabling VOCs to quickly enter the internal pore network of the activated carbon. This multi-level pore structure enables it to adapt to VOCs with different molecular sizes and properties, achieving a comprehensive purification effect.
FAQ
What raw materials do you use for VOCS Columnar Activated Carbon?
We manufacture VOCS Columnar Activated Carbon using premium coal-based and coconut shell materials. This combination ensures excellent adsorption performance and mechanical strength, making us trusted activated carbon suppliers for industrial gas treatment.
Can I request custom particle sizes for VOC adsorption?
We offer multiple standard particle sizes—1.5 mm, 3.0 mm, 4.0 mm, and 6.0 mm—to suit various gas-flow conditions. If you have specific requirements, our team can discuss tailored options to meet your industrial process needs as a reliable industrial VOC adsorbent supplier.
How is VOCS Columnar Activated Carbon installed and maintained in adsorption systems?
Our cylindrical activated carbon is designed for uniform packing and low air resistance, facilitating easy installation into adsorption beds. To maintain performance, it can be regenerated thermally or chemically, enabling reuse without compromising adsorption capacity.
What certifications support the quality and safety of your activated carbon products?
We comply with ISO9001, ISO14001, and ISO45001 standards, reflecting our commitment to quality, environmental care, and workplace safety. Our products also hold hygiene and food production licenses, assuring customers reliable and compliant activated carbon adsorption solutions.
