Columnar Activated Carbon

Product Overview

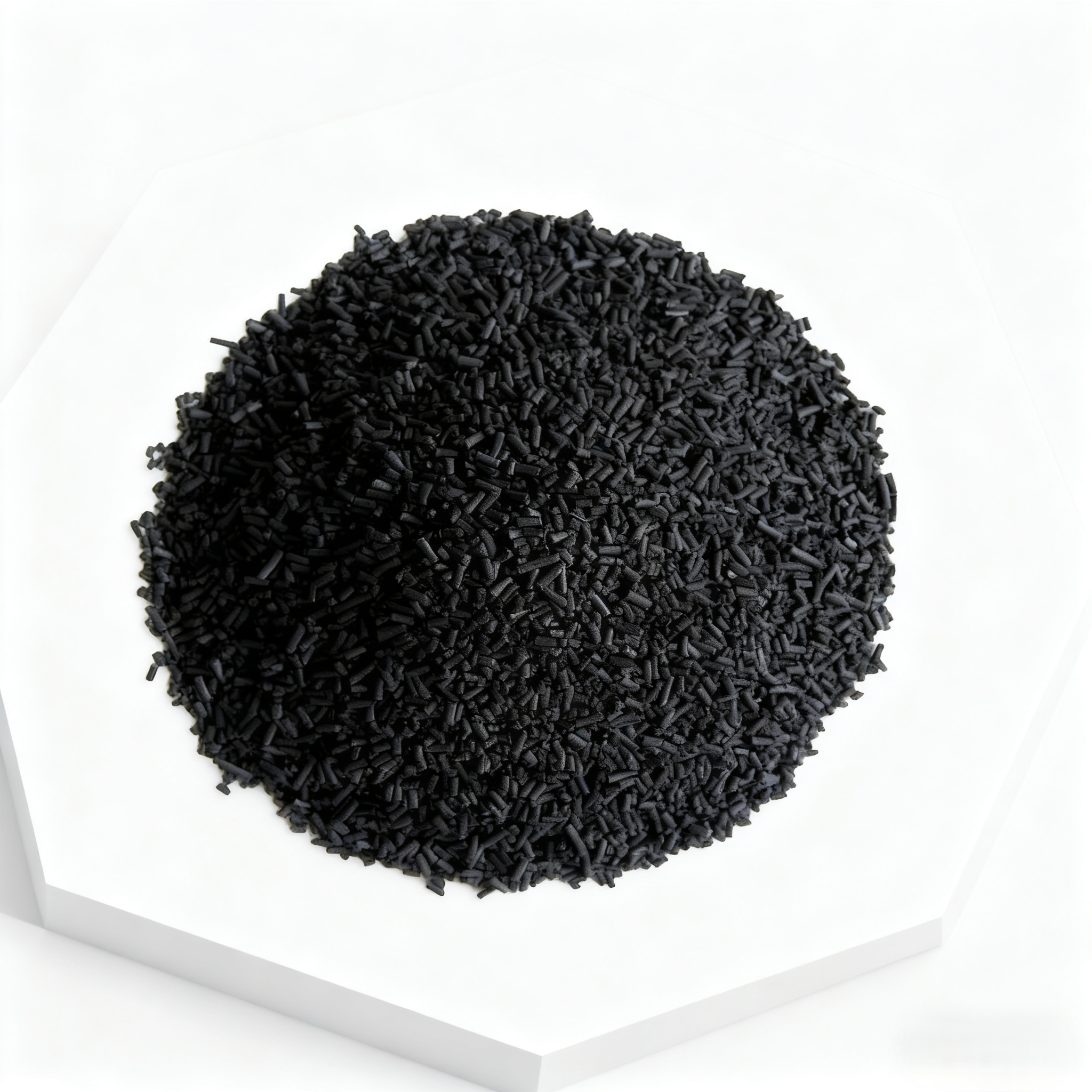

Columnar activated carbon is a hard, black cylindrical adsorbent made from selected coal or coconut shell. The raw material is formed into cylinders of a fixed diameter, carbonised in an oxygen-poor kiln, then activated at high temperature with steam and carbon dioxide, which opens a dense pore network through the whole pellet. That internal surface does the work: gas or liquid passes through the bed and the molecules you are trying to remove are held on the pore walls.

The shape is the practical difference. Cylinders of a stated diameter pack into a vessel evenly, so the flow path stays uniform from the top of the bed to the bottom and the pressure drop stays stable across a long service run. The pellets are hard enough to take the abrasion of loading, backwashing and changeout, which keeps fines down and makes the bed easier to screen, sample and reload than an irregular granular fill.

We make columnar activated carbon in coal-based and coconut-shell versions, and in a graded series that steps from general-duty to high-activity material, so one vessel design can be matched to a light or a demanding duty without reworking the equipment.

Most installations are fixed beds: an adsorber on an industrial off-gas line, a carbon column polishing process or drinking water, a solvent recovery unit, a canister of activated carbon for air purification, or a catalyst carrier bed. It is also the usual replacement where a plant has been running irregular granular carbon and wants a more predictable flow path and cleaner handling.

Because the media is consumed and replaced on a maintenance cycle, most buyers take it as bulk activated carbon — a full vessel charge, or a charge plus a spare set held on site so a changeout never waits on a delivery.

Chengde Tianyuan has been an activated carbon manufacturer since 2003 and works to ISO 9001. Columnar grades sit alongside our granular, powder and honeycomb lines, so the recommendation you get follows the duty rather than the one material we happen to have on the shelf.

Specifications

Iodine, CTC and Bulk Density

Iodine value is the figure most buyers quote first, and it is a fair indicator of how much micropore volume the carbon carries — in practice, how well it takes up small molecules from a liquid or a gas. It is one number, though, and it says nothing about how the bed will behave at your inlet concentration.

Carbon tetrachloride adsorption, or CTC, is the vapour-phase counterpart. A high CTC figure means the carbon has the pore structure to hold organic vapour, which is why it matters more than iodine value on solvent recovery and off-gas duty and less on a liquid stream.

Bulk density tells you what a cubic metre of the media weighs, and that drives three things: the total mass your vessel will hold, the load on the support grid, and how much material you need to fill a given bed.

They move against each other. In our graded series, as iodine value climbs, bulk density steps down. The most active grades are also the lightest, so a vessel filled with them holds fewer kilograms of carbon. The extra activity per gram has to earn back the mass you give up, and on a lightly loaded stream it often will not.

Matching a grade to a duty. Match CTC to gas-phase work and iodine value to liquid-phase work, then check the resulting bulk density against the vessel volume and the support design. The real working capacity of the bed — the balance of residence time, humidity, temperature and the molecule you are removing — is what sets changeout, and activated carbon adsorption performance on a data sheet only gets you to a sensible shortlist. Send the stream data and we will narrow it from there.

Grade Chart

Pellet Diameters

1.5 pellet presents the most external surface per cubic metre and reaches equilibrium fastest, which suits short beds, low flow rates and polishing duty where the outlet limit is tight. The price is the highest pressure drop per metre of any diameter in the range, so it belongs in small vessels and clean streams rather than tall towers.

3.0 pellet is the general-purpose middle: enough surface for a fast approach to equilibrium, with a pressure drop most existing skids can absorb. It is the usual starting point for solvent recovery and for packaged water filters.

4.0 pellet is the workhorse for large adsorbers. It fills tall vessels with a lower pressure drop than the 3.0 pellet and enough contact efficiency for mainstream off-gas and water duty, which is why a great deal of existing plant is built around it.

6.0 pellet suits high volumetric flows, deep beds and streams carrying some particulate, where keeping the fan duty down matters more than a fast mass-transfer rate. Expect to run a deeper bed to reach the same outlet concentration.

Pressure drop is a design calculation, not a catalogue figure. It depends on the diameter you choose together with superficial velocity, bed depth and the density and viscosity of the gas. Because diameter is the cheapest lever you have, changing the size of the activated carbon pellets is often how a marginal fan capacity is recovered — send us the flow, temperature, vessel diameter and bed depth for the duty and we will work the options through with you.

Bed geometry matters as much as the pellet. A shallow bed of small pellets can show a lower total pressure drop than a deep bed of large ones, so the choice should be made on the whole column rather than on the pellet alone.

Applications

• Industrial off-gas polishing — benzene, toluene, xylene and formaldehyde are held on the bed in ventilated and process exhaust streams, so the solvent load leaves in the carbon rather than in the stack.
• Solvent recovery — volatile oil and gas are recovered from the exhaust of printing, coating and similar lines, which cuts both product loss and the fire and health risk that comes with a solvent-laden stream.
• Drinking water purification — the bed removes taste and odour compounds, residual chlorine, some heavy-metal ions and organic matter, and normally sits after clarification and ahead of disinfection.
• Wastewater polishing — COD and BOD are reduced at the end of the treatment train, which matters where a discharge consent sits close to the limit or the water is going to be reused.
• Catalyst carrier — the stable structure and developed surface carry metal catalysts into chemical synthesis and environmental catalysis, where the support has to hold the active phase without reacting with it.
• Air purification units — for activated carbon for air purification equipment, a stated pellet diameter lets the cabinet be designed around a known pressure drop and a predictable changeout interval.
• Deep-bed columns and OEM skids — activated carbon pellets of a single diameter fill a column evenly, so an OEM can fix the bed volume and fan duty once and repeat the build across units.

Who It's For

Water and air treatment operators find the most direct fit. You run a fixed vessel, need an outlet quality you can defend to a regulator or a customer, and want a changeout you can schedule rather than react to. A uniform cylinder helps on all three points because the bed behaves the way the design calculation said it would.

Chemical and petrochemical processors come at it from the other side — a carrier bed that must not react with the active phase it holds, or a solvent recovery loop where the recovered material has to come back clean. Here you choose the grade for chemical stability and for a pore structure that releases the load on regeneration.

Environmental control contractors and system integrators buy against a drawing. You need the same grade to arrive on the next project with the same iodine value, CTC and bulk density, because the vessel, the fan and the changeout interval were all sized around it.

Distributors and OEM/ODM buyers resell or re-brand the material, so your tolerance for variation is the lowest of anyone. If you vet columnar activated carbon suppliers on batch consistency, you usually ask us for the same three things: a grade you can name on a purchase order, figures that stay inside the stated range, and a packing format that suits the way you store and resell it.

When you qualify a new carbon source, you may also need a specification you can attach to an internal approval or a tender without having to explain it. The grade chart on this product is designed to be used that way.

Advantages

• A lot of working surface in a compact vessel — the pore network runs through the whole pellet rather than sitting on its skin, so a modest bed carries a large adsorption load without a tall tower.
• Selective uptake — pore size and surface chemistry let the bed favour one class of molecule over another. That is why the same material can serve a solvent stream and a water stream once the specification is matched, and why activated carbon adsorption is never purely a matter of pore volume.
• Strength that survives the plant — the pellets resist abrasion, so loading, backwashing and changeout produce little fines and the bed does not compact into a hard mass that has to be chipped out.
• A stable pressure drop across the run — an even fill of uniform cylinders keeps the flow path open, so the fan or pump curve you designed for stays close to reality until the bed is spent.
• Repeatable grades — the graded series lets you re-order the exact combination of iodine value, CTC and bulk density that worked in your vessel, instead of accepting whatever falls inside a wide range.
• One material for gas and liquid duty — where a site runs both, the same carbon can be specified across the plant, which simplifies stock holding, operator training and changeout planning.

Physical and Chemical Characteristics

• Regular cylindrical form — hard black cylinders with a straight profile, which is what gives an even fill and a predictable void fraction inside the vessel.
• Developed internal pore structure — micropores carry most of the surface, mesopores take larger molecules and a small number of macropores act as transport channels into the pellet; the wide distribution is why the grade is not restricted to one class of contaminant.
• Moderate density — the material sits in the range where a vessel can hold a useful mass of carbon without overloading the support grid.
• Chemical stability — the carbon does not readily react in general acid or alkaline environments, so it can be used across a wide spread of industrial streams.
• A temperature ceiling — the structure can change and performance fall away above about 800 °C, and strong oxidants attack the carbon itself, so both need checking before a bed goes into a hot or oxidising duty.
• Active surface groups — carboxyl and hydroxyl groups on the surface take part in adsorption and in some chemical reactions, which is part of why activated carbon adsorption is not purely a question of pore size.

Production Process

1. Raw material preparation — coal or coconut shell is screened, crushed and dried to a consistent size and moisture before it reaches the kiln. Feed control is where an activated carbon manufacturer starts protecting the finished grade, because variable feed gives variable ash and strength.
2. Forming — the prepared material is blended and formed into cylinders of the chosen diameter, so the final size is set at this stage rather than cut afterwards.
3. Carbonisation — the formed cylinders pass through a kiln under anaerobic or oxygen-deficient conditions, where volatile components are driven off and the material takes on its initial carbon structure.
4. Activation — at high temperature and in the presence of steam and carbon dioxide, the pore network opens and the specific surface area develops. This is the step that sets iodine value and CTC, and the one where kiln control shows up in the batch figures.
5. Screening and impurity removal — the activated product is screened to the ordered diameter, fines and oversize are taken out, and the finished granules are checked before packing.
6. Sampling and packing — each finished lot is sampled for iodine value, CTC and bulk density before it is packed, and those figures travel with the material so you know what is going into the vessel.

Regeneration and Service Life

Carbon that has been in service can be reactivated, and on a large bed the economics are worth planning for. Thermal regeneration is the usual route: the carbon is heated in a controlled atmosphere so the adsorbed organics are driven off and the pore structure reopens, either in an on-site kiln or at a regeneration facility. Chemical regeneration uses a solvent or a pH shift to strip the load, and suits streams where the recovered species is worth keeping or where heat would damage the carbon.

Partial recovery, not full. Regeneration restores part of the original adsorption performance rather than all of it. Each cycle takes something out of the material, and what is left after several cycles depends on the duty far more than on the grade.

What decides how many cycles you get. Loading, the boiling range and chemical nature of the contaminants, the regeneration temperature and how gently the carbon is handled between cycles all matter. Inorganic salts and tars that cannot be driven off build up in the pore structure and shorten the useful life of the charge. That is why we will not quote a cycle count from a data sheet — tell us the stream and the regeneration route you have available, and we will work out what is realistic for it.

Where it pays. Solvent recovery and activated carbon for air purification units are the two duties where regeneration earns its keep fastest, because the load is organic, volatile and reasonably consistent from week to week. A lightly loaded water-polishing bed often makes better sense to replace than to regenerate.

Planning the changeout. Keep a record of inlet and outlet concentration and of pressure drop across each run. When the outlet starts to climb before the scheduled changeout, the bed is telling you it is spent. A sample of the spent carbon sent for analysis will confirm whether the load matched your design basis or whether something upstream has changed.

Coal-Based and Coconut-Shell Grades

• Coal-based — higher ash, a heavier fill and the wider raw-material base. It is the economical choice for large beds on water and off-gas duty where ash carry-over is not critical, and it holds its strength well in deep vessels.
• Coconut shell — lower ash and a harder, more uniform pore structure, with the highest iodine values in the range. It suits polishing duty, high-purity liquid streams and catalyst carriers, where a small ash fraction or a trace of colour matters.
• Side by side in the same vessel — coal-based material gives you more mass per cubic metre, coconut-shell material gives you more activity per gram. The right answer comes from the outlet limit you have to meet, not from the raw material on its own.
• The general grade and the waste gas grade — this general-purpose columnar activated carbon covers the broad middle of off-gas, water and carrier duty. Where a defined tail-gas stream has to meet a tight outlet limit inside a vessel that is already fixed, we specify our waste gas treatment grade instead, because that material is built around the duty rather than around general use.
• Where to draw the line — a process liquid with colour or odour to remove starts with this grade or with our powder line; a defined VOC stream starts with the waste-gas grade. Most columnar activated carbon suppliers quote one raw material and one grade; we run both, so the recommendation follows the stream rather than the stock list.
• Getting a comparison — ask for the coal-based and the coconut-shell option quoted against the same duty, then compare them on working capacity and changeout interval rather than on a single figure.

Ordering and Delivery

Send us the duty — the stream, the diameter you need, the iodine value or CTC you are targeting, the vessel volume and the quantity you want to buy — and we will come back with a grade and a packing proposal. Where the specification is still open, the fastest route is to tell us the outlet limit and the changeout interval you are planning for.

What we agree with you before the order goes ahead. The exact grade and its batch figures, the packing format, the quantity per container, the delivery schedule and the documents that go with the shipment. Packing, quantity and lead time are set against your order rather than fixed in advance, so ask your sales contact for the current position on the grade you have chosen.

Documents. Tell us which declarations your market or your customer needs and we will confirm what we can provide for that grade. For a tender or a customer qualification, ask early — paperwork is easier to arrange before the material is packed than after.

For bulk activated carbon orders. Give us the vessel volume and the changeout date and we will work back from that to a delivery plan, including a spare charge held back for the next changeout if you want one.

If you are still comparing columnar activated carbon suppliers, ask each of them the same three questions — which grade, what batch figures, and what packing — and the comparison becomes straightforward.

As an activated carbon manufacturer we ship direct from Chengde, and we would rather spend an extra round of questions getting the grade right than see a vessel loaded with the wrong material. Leave us a message with your duty and we will take it from there.

function and use and buyers

Columnar activated carbon is designed for industrial applications that call for efficient adsorption of gases and liquids. Typical users are water and air treatment facilities, chemical processing plants, and environmental control systems. It is particularly relevant for buyers who need consistent quality from an established activated carbon supplier, so it is worth confirming grade, packing and delivery terms against your own process requirements before ordering.

Scale & Supply Capability

Chengde Tianyuan Activated Carbon Co., Ltd. has been producing activated carbon in Chengde, China since 2003 as an integrated manufacturer and exporter, with a team of 50 covering production, quality control and export documentation in-house. Our works run on advanced equipment with sufficient capacity to keep repeat orders moving, and we operate to ISO 9001 and ISO 14001. We supply our full range of grades worldwide and support OEM work, custom specifications and private-label packing. Send your specification and volume, and we will confirm what we can schedule for you.
