Mechanism of Gold Extraction with Coconut Shell Carbon:
In cyanide solution, gold is adsorbed on the inner surface of activated carbon in the form of ion pairs, neutral molecules, or precipitated in the pores of activated carbon as a complex with metal ions (which may come from the solution or the ash of activated carbon, such as Ca, K, Na, etc.).
Au(CN)₂⁻ undergoes chemical decomposition to form insoluble AuCN, which remains in the pores of the carbon.
Some gold cyanide complexes are reduced to certain gold atom compounds with oxidation states of 0 and +1.
Au(CN)₂⁻ or AuCN is reduced to metallic Au.

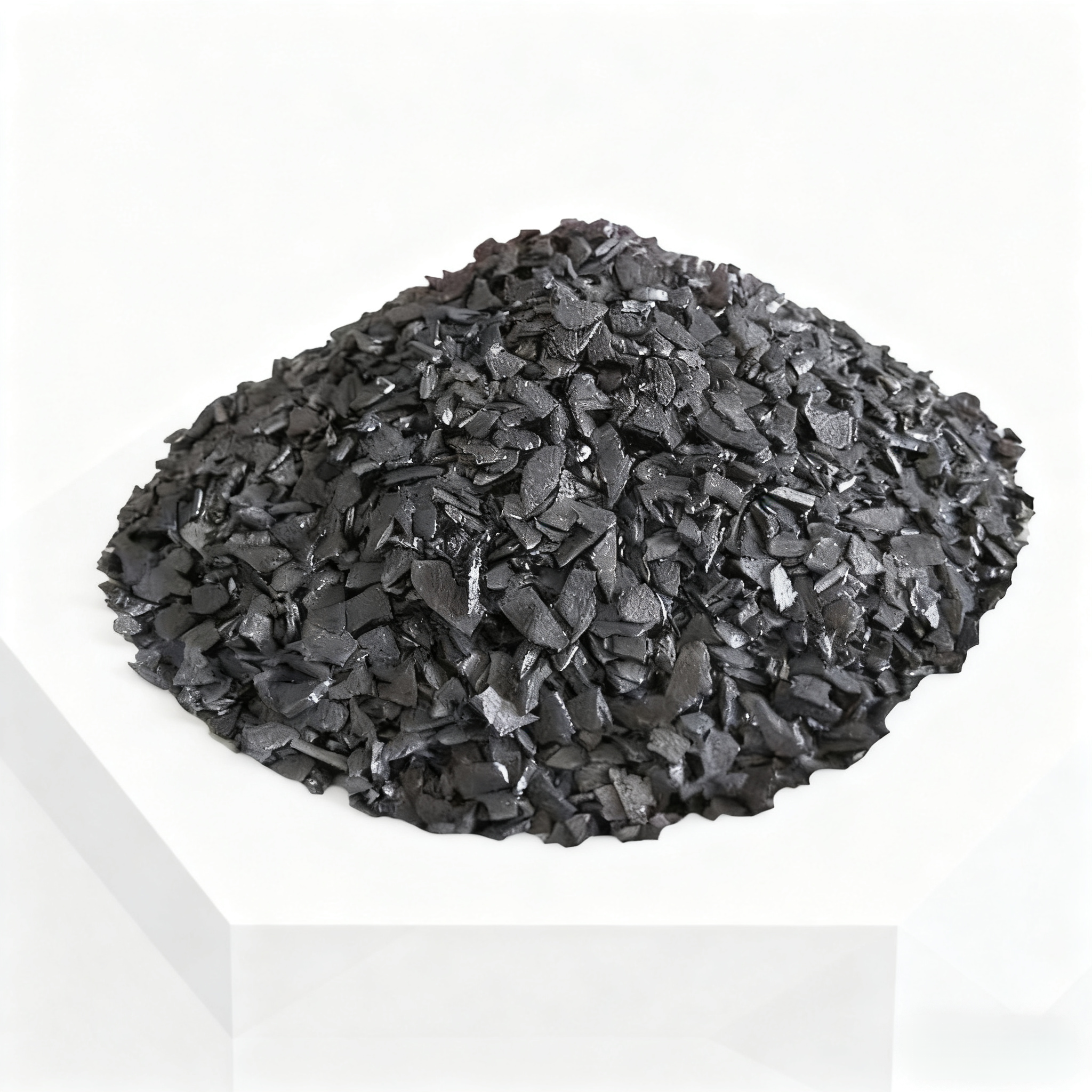

Microporous Structure For Gold Cyanide Adsorption This product is specifically manufactured using coconut shells as the precursor material, which are selected for their natural density and structural integrity. Through a controlled carbonization and steam activation process, we create a granular activated carbon characterized by a highly developed microporous structure. This internal pore network provides a large specific surface area, which is essential for the adsorption of gold-cyanide complexes from pregnant leach solutions. Unlike general-purpose carbons, the pore size distribution of this grade is adjusted to favor the kinetics required for precious metal recovery. The material is processed to meet specific technical parameters, aiming to provide stable adsorption capacity (K-value) and adsorption rate (R-value). For mining operations looking for consistent coconut shell activated carbon suppliers, this product offers a balanced performance between activity and physical density, designed to support efficient metal extraction in variable ore conditions.
Mechanical Hardness And Abrasion Resistance In gold recovery circuits, particularly Carbon-in-Leach (CIL) and Carbon-in-Pulp (CIP) processes, the carbon media is subjected to continuous mechanical stress from agitators and pumps. A primary technical focus of our coconut shell activated carbon is its hardness. We utilize high-density coconut shells to produce granules that resist attrition and breakdown during mixing. While no carbon is virtually indestructible, our manufacturing process aims to maximize the hardness value (typically measured by ASTM standards) to significantly reduce the generation of carbon fines. Reducing fines is critical because pulverized carbon containing adsorbed gold can pass through inter-stage safety screens and be lost to tailings. By maintaining particle integrity, our product helps operators manage the risk of gold loss, distinguishing our factory among coconut activated carbon manufacturers focused on practical mining solutions.
Particle Size Uniformity And Impurity Control The physical dimensions of the carbon granules are strictly controlled to ensure compatibility with standard mining equipment. We offer standard mesh sizes such as 6x12, 8x16, and 12x30, produced through a multi-stage screening process to minimize the presence of undersized particles and platelets. Uniform particle size is important for maintaining adequate flow rates in adsorption columns and preventing the blinding of screens in CIP tanks. Additionally, as a carbon activado product intended for industrial metallurgy, we monitor ash content and moisture levels to ensure the active carbon weight delivered is maximized. The low platelet content helps in reducing hydraulic resistance and improving the separation efficiency of carbon from the slurry, providing a dependable medium for gold extraction plants worldwide.
Product Advantages
Enhanced Adsorption Kinetics For Process Efficiency The efficiency of a gold plant is often measured by how quickly gold can be adsorbed from the solution. Our coconut shell activated carbon is engineered to provide favorable adsorption kinetics, allowing for effective loading of gold even in circuits with shorter residence times. By optimizing the activation conditions, we create a surface chemistry that has a strong affinity for gold complexes. This characteristic helps in maintaining low soluble gold levels in the barren solution, which is a key objective for plant metallurgists. While performance can vary based on ore characteristics and water quality, our material is designed to offer competitive loading capacities compared to standard industry grades. This makes us a practical choice for coconut shell activated carbon suppliers aiming to support mines in optimizing their daily throughput and recovery targets.
Durability In Regeneration Cycles Economic sustainability in mining often depends on the ability to reuse process materials. Our granular activated carbon is capable of undergoing thermal regeneration in rotary kilns. Due to the inherent strength of the coconut shell structure, the granules can withstand the thermal stress of reactivation temperatures (typically around 650-750°C) with managed mass loss. This durability allows the carbon to be returned to the adsorption circuit multiple times, extending its operational lifespan. While some attrition is inevitable during transport and regeneration, our product's resistance to crushing helps minimize the rate at which fresh make-up carbon must be added. This feature provides a tangible cost-benefit for operators, positioning us as coconut activated carbon manufacturers who prioritize the long-term operational costs of our clients.
Strict Quality Consistency For Stable Operations Variability in carbon quality can lead to unpredictable plant performance. We implement a quality control system aligned with ISO9001 standards to monitor key parameters such as Iodine Number, CTC activity, and Hardness for every batch produced. Our approach as a source enterprise is to minimize batch-to-batch variation, ensuring that the carbon activado received by the customer behaves consistently in the extraction circuit. We do not claim to eliminate all operational challenges, but we strive to provide a product that meets agreed-upon specifications reliably. This focus on consistency helps mining engineers plan their maintenance and elution schedules with greater confidence, knowing that the filtration media will perform within the expected parameters.
Use Scenarios Carbon-in-Leach (CIL) Processing Plants In a CIL operation, ground ore slurry flows through a series of tanks where gold leaching and adsorption occur simultaneously. The plant operator introduces granular activated carbon into the tanks, where it moves counter-current to the slurry flow. In this environment, the carbon must withstand the shear forces generated by the mixing impellers. Our product is applied here to adsorb dissolved gold while resisting physical degradation. The goal is to retain the carbon on the inter-stage screens while allowing the slurry to pass. A consistent particle size helps prevent screen blockage, which is a common maintenance issue. By using our media, the plant aims to maintain a steady recovery rate, reducing the frequency of screen cleaning and carbon advancement delays.

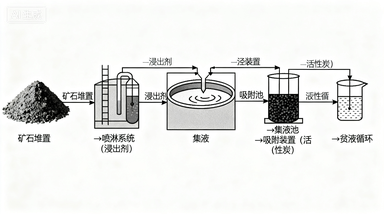

Heap Leach Carbon-in-Column (CIC) Systems For mines processing lower-grade ore via heap leaching, the pregnant leach solution is pumped through a train of columns packed with carbon. In this scenario, the hydraulic conductivity of the carbon bed is crucial. We supply coconut shell activated carbon typically in 6x12 mesh size for these applications to allow for high flow rates with manageable pressure drops. The porous nature of the carbon captures gold from the continuous solution flow. Operators monitor the effluent from the columns to ensure gold capture is effective. Our product serves as the primary collection medium, designed to load gold efficiently before being removed for stripping. As coconut shell activated carbon suppliers, we provide material that supports the hydraulic and chemical requirements of these static bed systems.
Gold Stripping And Reactivation Once the carbon is loaded with gold, it is transferred to the elution circuit where the gold is desorbed using high-temperature caustic solutions. Following this, the barren carbon often passes through a reactivation kiln. A refinery technician manages this process to restore the carbon's activity. Our carbon activado is suitable for this thermal cycling. It is designed to resist turning to ash under high heat, although proper kiln atmosphere control is required. The ability of our carbon to retain its hardness after regeneration is a key factor for reuse. This application scenario highlights the importance of sourcing from experienced coconut activated carbon manufacturers, as the material's longevity directly impacts the operating costs associated with carbon consumption and replacement.
About Us Chengde Tianyuan Activated Carbon Co., Ltd. is a manufacturing enterprise established in 2003, located in Pingquan, Hebei Province. We specialize in the production and supply of activated carbon products, including those derived from coconut shell, coal, and wood. Our facility operates with an annual production capacity of approximately 8,800 tons. We focus on serving the industrial sector, with a specific product line dedicated to gold mining and water treatment. Our company holds ISO9001 certification,we aim to be a reliable partner for global clients, providing direct factory access and technical support without the exaggerated claims often found in the market. Our business is built on delivering consistent product quality and establishing long-term cooperation with partners in over 40 countries.
Call to Action Consult with our technical team today to discuss your specific specifications and request a product datasheet!
FAQ What is the typical hardness of your gold extraction carbon? Our coconut shell carbon for gold extraction is manufactured to achieve high hardness, typically testing above 98% according to standard test methods, to reduce attrition in mixing tanks.
Which mesh sizes are available for mining applications? We commonly supply 6x12, 8x16, and 12x30 mesh sizes. We can also adjust screening parameters to meet specific particle size distribution requirements for your plant.
Is this carbon suitable for both CIP and CIL processes? Yes, the product is designed as a granular activated carbon with physical properties that allow it to function effectively in both Carbon-in-Pulp (CIP) and Carbon-in-Leach (CIL) circuits.
How do you package the carbon for export? We typically package the carbon in 25kg bags or 500kg big bags (jumbo bags) on pallets, ensuring the material is protected during transit to international mining sites.
Can I request samples for laboratory testing? Yes, as coconut shell activated carbon suppliers, we encourage clients to request samples to verify parameters such as K-value, R-value, and hardness in their own metallurgical labs.
