Catalytic CombustionHoneycomb Activated Carbon

Product Overview

Most VOC abatement problems show up in the same place: the bed has to be stopped, stripped and recharged before the campaign is over. This catalytic combustion activated carbon is built around that constraint. It is a honeycomb block formed on a high-quality activated carbon base and loaded with precious-metal active components, so one material does two jobs — it adsorbs organic pollutants out of the exhaust, and then, once the bed is brought up to temperature, it catalyses their oxidation into carbon dioxide and water.

A block, not a granule

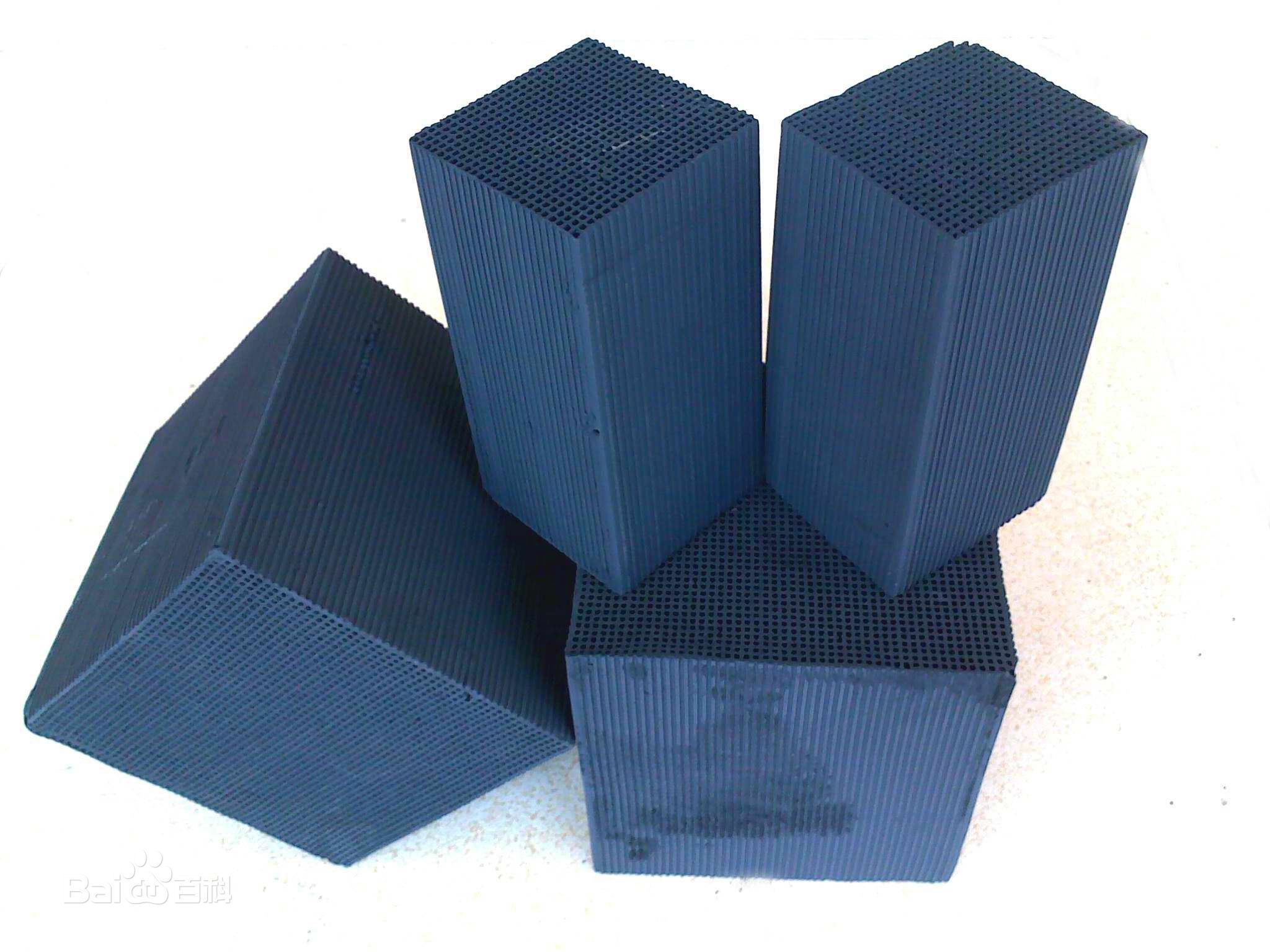

Each piece is a dark, square-faced honeycomb with straight parallel channels running its full depth and ribbed side walls. Gas travels down those open channels instead of being forced through a packed bed of granules, so pressure drop stays low at high face velocity and a compact housing remains practical on a large exhaust. The carbon walls between the channels carry the pore structure that does the adsorbing.

Who works with it

Environmental contractors designing the catalytic stage of a VOC train, plant utilities and EHS teams running coating, printing, pharmaceutical, petrochemical, rubber and plastics exhausts, and distributors who hold honeycomb activated carbon as project stock all specify this grade for one reason: the charge is regenerated where it sits instead of being pulled and replaced on every cycle.

What it is not

It is not a polishing adsorbent for liquid streams and it is not a fuel. Its work is gas-phase, and it needs a unit that can heat the bed and hold the temperature, because the loaded metal only earns its keep when there is a temperature programme to drive it. Whether you are specifying a single bed charge or placing a bulk activated carbon order against a project schedule, the blocks are made to the duty rather than picked off a shelf — the gas data you send is what fixes the loading, the channel size and the batch.

Specifications

Active Component System

• Platinum and palladium carry the reaction — the active components are precious metals, most often platinum, palladium or a combination of the two, dispersed through the internal pore surface of the carbon. They are what makes catalytic combustion activated carbon work at bed temperature rather than at flame temperature.
• Loading is set per duty, not taken off a list — the metal content is fixed once the VOC species, inlet concentration, flow, moisture and required outlet are known. A dilute stream and a hot, concentrated one do not want the same charge, and matching the two is most of the specification work.
• Distribution matters as much as quantity — the metal has to reach the pore surfaces throughout the wall of the block, not sit on the outside faces. Loading that sits unevenly shows up later as uneven conversion and local hot spots.
• The metal is not consumed by the reaction — its activity shifts as the surface changes during service and recovers part of that activity again once the bed is returned to favourable conditions. That is what makes repeated cycling realistic rather than theoretical.
• Repeatability across batches — we apply the loading at our own works, so as an activated carbon manufacturer we can match a replacement charge to the figure recorded for the original, and the bed behaves the way it did on day one.

Working Cycle

1. Adsorb — exhaust gas is drawn through the open channels and the organics are held on the carbon's pore surface; treated gas leaves the bed at low concentration.
2. Watch the shoulder — outlet monitoring shows concentration starting to lift as the working zone moves through the block. That is the point to swing into regeneration, before full breakthrough.
3. Bring the bed up — the unit raises the block temperature into the oxidation window. The loaded metal is what allows the captured organics to react there instead of needing a flame.
4. Oxidise in place — the adsorbed organics are converted to carbon dioxide and water on the active sites, and the pore surface clears as the reaction runs.
5. Cool and return — the bed comes back down to adsorption temperature and goes back into service in the same housing, with the same blocks.
6. Repeat — the charge runs this cycle many times over its life; how many depends on the gas, the loading and how closely the operating limits are held.

Operating Limits & Service Life

The working window

The catalytic oxidation step normally runs between 200 °C and 400 °C. Inside that band the loaded metal is active enough to convert what the carbon has captured, and the unit avoids the fuel and the refractory build that straight thermal incineration demands.

The ceiling is set per application

The top of the window is not a number you can read off a data sheet and forget. Run an industrial waste gas carbon charge above its ceiling and two things happen at once: the carbon base starts to oxidise and lose strength, and the metal particles grow and shed the surface the reaction depends on. Where that point falls depends on the block, the gas and the housing, so confirm the safe upper limit — and the alarm and trip settings that go with it — with our technical team before you commission the charge. Treat the working range as a starting band, not a guarantee.

Ramps and thermal shock

Blocks crack because of temperature difference across the piece, not because of steady heat. Bring the bed up and down on a gradual ramp written into the unit's own programme, keep cold gas and cold purge air away from a hot bed, and do not quench after a regeneration cycle. Permitted heating and cooling rates depend on the block size and on how the housing is loaded — agree them with us when the charge is specified.

What shortens the life of a charge

Sulphur compounds, halogens from chlorinated solvents, phosphorus, silicone and heavy metals such as lead, zinc or tin all attack a precious-metal catalyst, while fine dust or unburned polymer masks the surface and closes the pores. If any of these are in the stream — even occasionally, after a solvent change or a new line — declare them at specification stage, because they change both the loading and the guard strategy ahead of the bed.

Reading the signs

A charge that is tiring usually says so in one of four ways: the outlet concentration climbs earlier in each cycle, conversion at a given bed temperature falls away, the cycles get shorter, or the pressure drop across the bed rises. A step change straight after a feedstock or solvent switch is a strong hint that something in the gas has moved.

When to replace

Judge the charge against the baseline taken at commissioning rather than against a single reading on a bad day. Once the unit can no longer hold its outlet limit inside the temperature budget you have, the charge is spent. Send us the trend data and we will go through it with you before you commit to a replacement batch.

Applications

• Coating and paint lines — booth and oven exhaust carries esters, ketones and benzene series solvents. The bed sits at the tail of the line and holds the outlet inside consent through shifts that swing from full production to idle.
• Printing and packaging — flexographic and gravure dryers release alcohol and ester solvents at high volume and low concentration. The solvent load arrives steadily through the shift and the charge is regenerated on the unit's own schedule.
• Pharmaceutical and fine chemical — reactor, dryer and centrifuge vents arrive in batches, with concentration spikes followed by long quiet periods. Adsorption rides the spikes and the catalytic step clears the bed between campaigns.
• Petrochemical and tank farms — loading, breathing and small process vents carry benzene series compounds. A catalytic stage polishes what a knock-out drum and a concentrator leave behind.
• Rubber and plastics — extrusion, calendering and vulcanising lines give off a mix of VOCs and odour that is noticeable at the fence line even when concentration is low. Oxidation in place deals with both.
• Where it sits in the train — this industrial waste gas carbon normally forms the last stage before the stack, after particulate removal and any concentration step, so dust and droplets never reach the block faces.

Advantages

One charge instead of two

A conventional arrangement splits the job in half: an adsorbent captures the solvent and a separate catalyst destroys it. Putting both on one block means one housing, one loading procedure and one material to keep in stock — and on a bulk activated carbon order, one specification to qualify instead of two.

Conversion without a flame

The reaction runs on the loaded metal at bed temperature, well under what thermal incineration needs. Fuel demand falls, the housing no longer has to be built for flame temperatures, and the unit can be smaller for the same exhaust flow.

Fast uptake on a concentrated stream

The pore structure gives the block a high capacity for organic vapour and a quick rate of uptake, so a concentration spike is captured before it reaches the stack instead of passing straight through.

Blocks that survive the housing

Compressive strength comfortably above what a normal bed depth demands means the blocks take the air flow, the loading and the inspection without crumbling. That matters beyond the bed itself: broken media turns into dust, and dust blinds the next layer of blocks.

The same charge, again and again

Because the block returns to service after every oxidation cycle — something a plain honeycomb activated carbon cannot do — running cost is driven by the temperature swing rather than by replacement media, and the volume of spent carbon leaving site falls with it.

Characteristics

Production Process

1. Raw material selection and pretreatment — activated carbon raw material is screened, crushed and ground, removing impurities and bringing the particle size into range before anything is loaded onto it.
2. Loading of the active components — impregnation, ion exchange or chemical vapour deposition is used, depending on the metal and the target. In impregnation the carbon soaks in a precursor solution and is dried and calcined so the precursor decomposes into the active component; ion exchange swaps metal ions onto the surface functional groups; chemical vapour deposition deposits from a gaseous precursor.
3. Mixing and extrusion — the loaded carbon is blended with a binder such as cellulose or phenolic resin and extruded into a honeycomb blank with the channel pattern the order calls for.
4. Drying — moisture is driven off and the blank gains the strength it needs to be handled and stacked.
5. Calcination and activation — a high-temperature treatment develops the pore structure and fixes the catalytic activity.
6. Inspection before packing — iodine value, compressive strength and active component content are checked and the lot is released against specification before it is packed.

Ordering & Delivery

• Send the duty, not just a quantity — gas composition and VOC species, inlet concentration, flow, temperature, moisture and the outlet limit you have to hold, plus the unit type and, on a replacement, the block dimensions and how the bed is loaded.
• Quantity in the unit your bed is measured in — blocks, cubic metres or kilograms, converted to the same figure on both sides so nothing is lost at goods-in.
• Packing agreed with the order — honeycomb blocks are packed to survive handling and export transit; tell us the stacking and pallet limits at your site and we will match the packing to them.
• Lead time and shipping terms quoted per order — seasonal demand and block size both move the schedule, so confirm current lead time and terms with your sales contact before you book an installation window.
• Trial blocks — ask your sales contact about sample blocks if you want to run an adsorption or oxidation trial before committing to a full charge.
• Documents with the batch — as an activated carbon manufacturer we release each batch with its record and test data; tell us at order stage which additional documents your acceptance procedure needs.
• Scheduling repeat programmes — project rollouts and annual bulk activated carbon requirements are planned with you across the year, so a regeneration shutdown never leaves the bed empty.
• Getting a proposal moving — send the duty data through the enquiry form and our team will come back with a proposed charge, its channel size and its loading.

Integration & Performance Testing

1. Send the unit data alongside the duty data — a gas analysis on its own is not enough to check a charge. We ask for the housing drawing, the bed dimensions and how the bed is loaded, the heating method and the ramp it can hold, the instrumentation fitted, and everything upstream of the bed: dust filter, knock-out drum, concentrator. On a retrofit, add the trend data from the last two cycles.
2. Design review before the blocks are made — we check face velocity through the open channels, whether the bed depth gives the gas enough contact time, whether the unit can actually reach the oxidation window on the heating capacity it has, and whether the pre-treatment keeps dust and droplets off the block faces. Anything that would hold the charge back is raised at this stage, while the channel size and the loading can still be changed.
3. Trial run on sample blocks — adsorption and oxidation cycles are run on sample blocks from the intended production batch: capacity, the shape of the breakthrough curve, conversion at a reference temperature, and whether the second and third cycles repeat the first. You see the numbers before the full charge is scheduled.
4. Installation check — channels lined up with the gas flow, load spread evenly across the support, gaskets and bypass seals confirmed, faces blown clean, and no cold spot at the inlet where condensate can collect.
5. Commissioning baseline — one clean adsorption run is recorded as the reference: outlet concentration, bed temperature, face velocity and pressure drop. That record is what every later comparison is measured against.
6. First oxidation cycle, watched through — the ramp held to the programme agreed for the block size, and conversion read at a reference temperature rather than taken from a single hot reading. Alarm and trip settings for the bed are confirmed with your control engineer at this point instead of being left at default.
7. Handover and trend review — operating programme, alarm values and the baseline record go into your file. We go through the logged trends at intervals agreed with your engineers and tell you when a catalytic combustion activated carbon charge is starting to drift, rather than waiting for the outlet limit to fail.

Spare Blocks & Replacement Planning

• Set the spare quantity at order stage — a full second charge turns a regeneration outage into a block swap, while a partial set covers the block chipped during inspection and the one that fails first. Tell us the shipment is a spare set so it is drawn from matched production and the batch record is kept with it.
• Store spare blocks dry — honeycomb activated carbon takes up moisture from humid air, and a damp block loses strength before it is ever loaded. Keep spares in their packing, under cover, off the floor and on a flat pallet, and bring them to the unit only when the bed is open.
• Record the four things a replacement must match — channel opening, block face size and depth, active component loading, and the batch the working charge came from. With those on file a later charge behaves like the one already in the housing; without them, a replacement is a guess.
• Replace by bed layer, not one block at a time — a fresh block set among aged ones takes a different share of the flow and regenerates differently. One-for-one replacement is fine early in life for a chipped piece; once the charge is well into its life, change the layer.
• Inspect at every shutdown — check the faces for dust, soot or polymer film, the channel edges for chipping, and the seals for gas bypass. A blinded face is the most common reason a bed starts to look tired when the carbon itself is still sound.
• Keep broken blocks out of the housing — crumbs and dust from a failed block blind the layer behind it and push the pressure drop up for a reason that has nothing to do with the carbon.
• Order ahead of the outage, not after it — the trend usually turns before the outlet limit fails. Start the replacement order when the baseline comparison first shows drift, so a matched charge is on site inside the shutdown window you already have scheduled.

Scale & Supply Capability

Chengde Tianyuan Activated Carbon Co., Ltd. has been producing activated carbon in Chengde, China since 2003 as an integrated manufacturer and exporter, with a team of 50 covering production, quality control and export documentation in-house. Our works run on advanced equipment with sufficient capacity to keep repeat orders moving, and we operate to ISO 9001 and ISO 14001. We supply our full range of grades worldwide and support OEM work, custom specifications and private-label packing. Send your specification and volume, and we will confirm what we can schedule for you.
